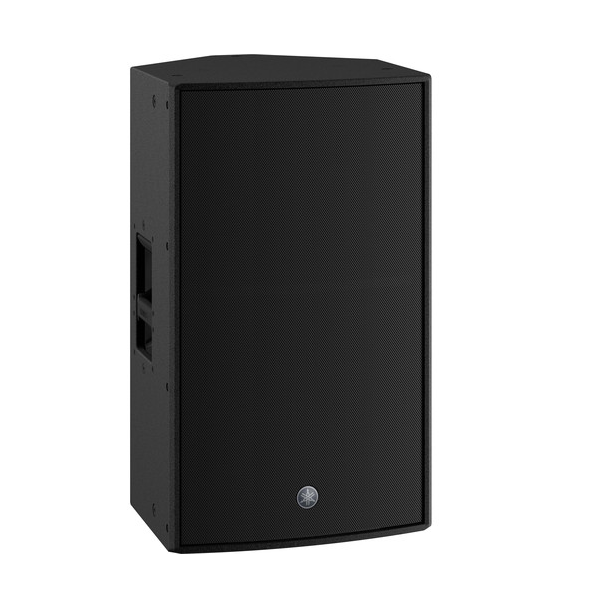

Yamaha DZR15-D 2000W 15" Active Speaker With Dante

Power, Performance, and Easy System Integration

The Yamaha DZR15-D offers superb clarity and best-in-class SPL performance. This 2-way bi-amped PA speaker boasts a high-power 2,000-watt Class D amplifier and a 34Hz–20kHz frequency range, and it can tackle any application you throw at it. Sophisticated DSP processing yields high-resolution sound with super-low latency, while an intuitive LCD display makes dialing in your settings a piece of cake. Built-in Dante capabilities enable smart system integration with Yamaha consoles and other Dante devices. The DZR15-D also operates effectively as a stage monitor. The DZR15-D employs a lightweight yet durable plywood cabinet with a premium-grade polyurea coating.

Sophisticated DSP processing

At Prime Audio Works, we're impressed by the DZR15-D's intelligent DSP processing. Yamaha's Advanced FIR-X tuning employs a combination of FIR filtering and corrective EQ to minimize phase distortion, ensuring smooth frequency response, stunning clarity, and accurate sound imaging. D-Contour is an intelligent multiband compressor that maintains the ultimate in clarity, even when you push the DZR15-D to its highest output level. D-Contour features two settings, FOH/Main and Monitor mode, allowing you to fine-tune the DZR15-D's sound based on your application. You also get DSP protection that safeguards your power supply, power amplifiers, and transducers against damage. Despite all this powerful DSP, the DZR15-D remains easy to use, thanks to optimized factory presets and an intuitive LCD screen.

Custom-designed transducers

The Yamaha DZR15-D is loaded with great-sounding, custom-designed transducers. Its high-frequency transducer includes a 2-inch voice coil and 1-inch throat compression driver, a titanium diaphragm, and neodymium magnet housed in a heat-resistant aluminum-cast frame. Its low-frequency transducer uses a large 3-inch voice coil, cast-aluminum frame, and powerful yet lightweight neodymium magnet to handle the chest-thumping low end that the DZR15-D delivers. The DZR15-D isn't just all about power, however. Its low-end response is tightly controlled, especially in the mid-bass and vocal range, assuring crystal-clear sound reproduction — even at cranked volumes.

Built-in Dante capabilities

Integrating the DZR15-D with Yamaha consoles and other Dante devices is a breeze. The DZR15-D features a built-in 2-in/2-out Dante interface, along with sample rate conversion, allowing 48kHz device compatibility. Benefit from simplified patching with Yamaha's CL/QL digital consoles from their I/O device display, while TF console users can select Quick Config for fast, easy setup. You can also combine the DZR15-D's Analog I/O with Dante I/O, supplying you with flexible routing and system configuration. Or use the Dante break-In and break-Out function to act as a simple I/O box. Beyond that, Yamaha’s ProVisionare Control software for Windows and ProVisionare Touch for iPad are also Dante compatible, giving you added remote management of your system

Smart, ultra-flexible design

The Yamaha DZR15-D integrates with any configuration, thanks to its ultra-flexible design. Its rotatable horn allows vertical or horizontal mounting. Benefit from a 90° x 60° dispersion from a vertical position. Enjoy smooth, level coverage, by virtue of the DZR15-D's constant directivity horn — its innovative design minimizes the roll-off that conventional horns often produce.

High-power Class D amplifier

Loaded with 2,000 watts of Class D power, the DZR15-D is a beast. It delivers an impressive 139dB SPL, so go ahead and crank it up — the DZR15-D can take it. Enjoy maximum power, along with stable, worry-free operation, thanks to a universal switching-mode power supply. Beyond that, this amp was optimized to match the DZR15-D's transducers, ensuring top-tier sound quality.

FEATURES

Yamaha DZR15-D Powered Speaker Features:

• 2-way powered loudspeaker with 2" HF and 15" LF drivers

• Boasts a high-power 2,000-watt Class D amplifier and 34Hz–20kHz frequency range

• Advanced FIR-X tuning employs a combination of FIR filtering and corrective EQ to minimize phase distortion

• D-Contour is an intelligent multiband compressor that maintains clarity at high output levels

• FOH/Main and Monitor modes allow you to fine-tune your sound based on your application

• DSP protection safeguards your power supply, power amplifiers, and transducers against damage

• Optimized factory pre-sets and intuitive LCD screen make operation easy

• Great-sounding, custom-designed transducers

• Built-in 2-in/2-out Dante interface enables smart system integration with Yamaha consoles and other Dante devices

• Rotatable horn allows vertical or horizontal mounting

• 90° x 60° dispersion from a vertical position

• Constant directivity horn supplies smooth, level coverage without roll-off

• Universal switching-mode power supply offers maximum power, along with stable, worry-free operation

• Lightweight yet durable plywood cabinet with a premium-grade polyurea coating

SPECS:

• Power Configuration: Bi-amped

• Channels: 2

• LF Driver Size: 15" cone

• HF Driver Size: 1" throat compression driver

• LF Driver Power Amp: 1000W Class D (peak)

• HF Driver Power Amp: 1000W Class D (peak)

• Total Power: 2000W Class D (peak)

• Inputs: 2 x XLR-1/4" combo

• Outputs: 2 x XLR

• USB: 1 x Type A

• Other I/O:2 x EtherCON (Dante)

• Frequency Range: 34Hz-20khz (-10 dB)

• Crossover Frequency: 1700 Hz

• Maximum Peak SPL: 139 dB SPL @ 1m

• Horizontal Coverage Angle: 90 Degrees

• Vertical Coverage Angle: 50 Degrees

• Signal Processing: EQ, Delay

• Enclosure Material: Plywood

• Mounting Options: Pole Mount with 1.37" socket, Floor Wedge, 12 x M10 Fly Points

• Power Source: Standard IEC AC cable

• Height: 30"

• Width: 17.7"

• Depth: 18.1"

• Weight: 55.6 lbs.

• Manufacturer Part Number: DZR15-D
