Wharfedale CPD2600 Power Amplifier

Power Simplified

Working in stereo, parallel and bridged modes CPD2600 is built for a multitude of sound system formations. Brand new class H topology has resulted in a dynamic, high headroom amp made for propelling your loudspeakers through thick and thin with complete clarity.

Precision Control

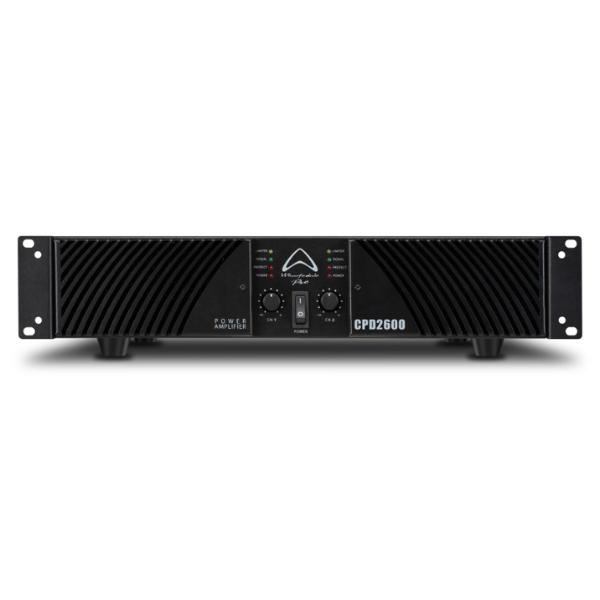

Large rotary dials accurately adjust gain levels, and you will know when to do so from the clear and simple front panel. A 4 segment led formation displays shows vital power status, level, limit and protect information, keeping the sound engineer in the know.

Protection & Durability
The CPD2600 is rife with technology that offers complete protection for your peace of mind. A built-in switchable limiter allows over 8Vrms signal through without distortion. Additionally it is equipped with thermal, overcurrent, DC and output short protect features. Professional audio equipment is an investment. That is why the adept components of the amplifier are housed within a 2U steel chassis which is universally rack mountable. This hard wearing all-steel casing also features a removable air filter in the front bracket which can be cleaned or replaced easily.

Key Specs:

• 8 Ohms x 2: 650W RMS
• 4 Ohms x 2: 1000W RMS
• 8 Ohms Bridged: 1940W RMS
• 4 Ohms Bridged: 2600W RMS
• Class AB Technology
• Status and clip LEDs
• Thermal, overcurrent, DC and output short protect circuitry

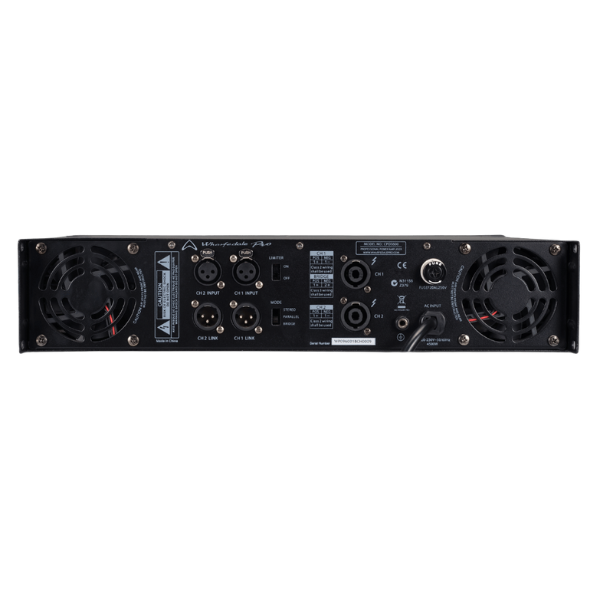

• 2 x Speakon outputs
• 2 x XLR outputs to link other audio equipment
• 2 x XLR inputs
• Peak and protect LEDs
• Built-in switchable limiter
• Continuously variable speed fan
• Suitable for touring, rental and installation
