Shure SLXD24/B87A Digital Wireless Handheld System

Wireless System with Beta^®87A Handheld Transmitter

Featuring the Beta®87A Supercardioid Condenser Microphone capsule on top of the SLXD2 handheld wireless transmitter, the SLXD24/B87A provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.

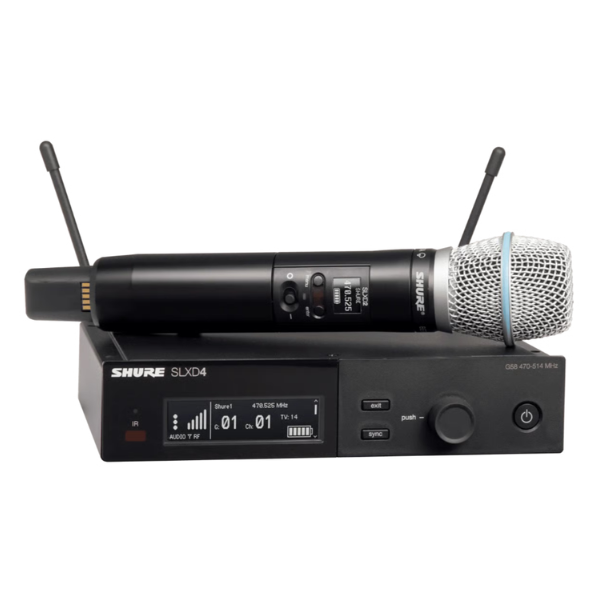

The SLXD24/B87A Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/B87A handheld transmitters with antenna and rackmount accessories and 2 AA batteries.

Key Features:

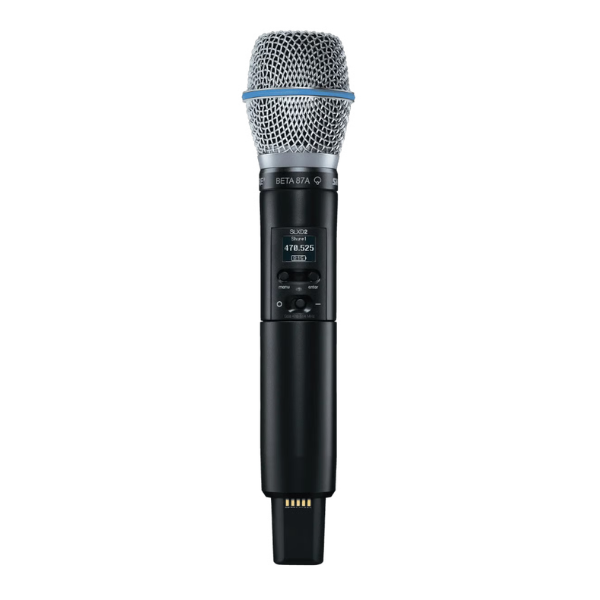

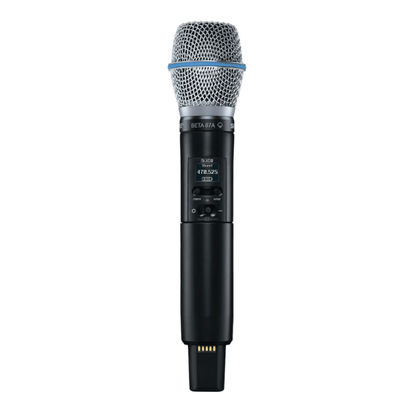

• With durable aluminum housing, the SLXD2 handheld transmitter offers a lightweight design that's comfortable to hold,  and it features an LCD to show essential information.
• The Beta 87A condenser microphone capsule handles SPL levels up to 140 dB and offers a smooth frequency response with a gradual presence rise and controlled proximity effect tailored for vocals. Its supercardioid pickup pattern helps isolate the voice from unwanted background noise.
• The transmitter's interchangeable capsule design allows you to choose the ideal capsule for your application. Shure offers a variety of optional dynamic and condenser mic capsules with varying pickup patterns—capsules include the Beta 58A, SM58, and KSM8.
• The SLX-D delivers 24-bit digital audio with a fast transient response and over 120 dB of dynamic range—resulting in clear, accurate sound.
• The system operates in the H55: 514 to 558 MHz UHF band with a 44 MHz tuning range and 1760 selectable frequencies, far away from potential Wi-Fi interference in the 2.4 GHz band.
• Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas for the cleanest signal—before dropouts occur.
• With a low latency of 3.2 ms, the system is ideal for applications that require live sound reinforcement.
• The SLX-D's spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
• The system supports up to 10 compatible systems per 6 MHz TV band and 12 systems per 8 MHz band.
• Ethernet networking saves you time with coordinated group scanning between multiple receivers from a single location; TCPI command streams from third-party companies such as AMX and Crestron are also supported.

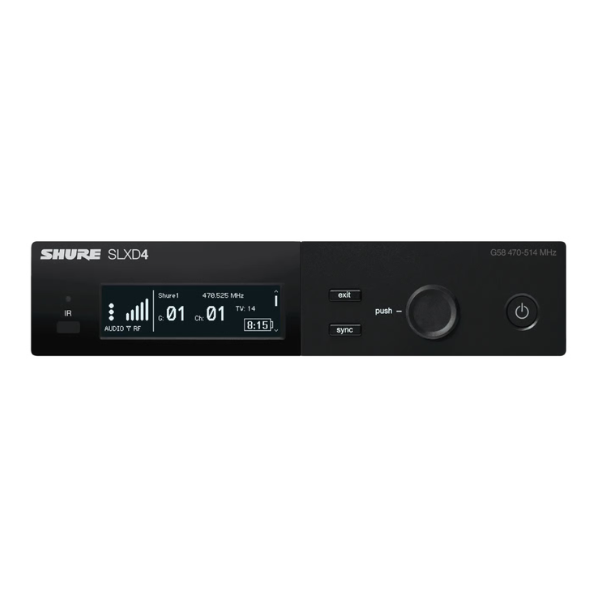

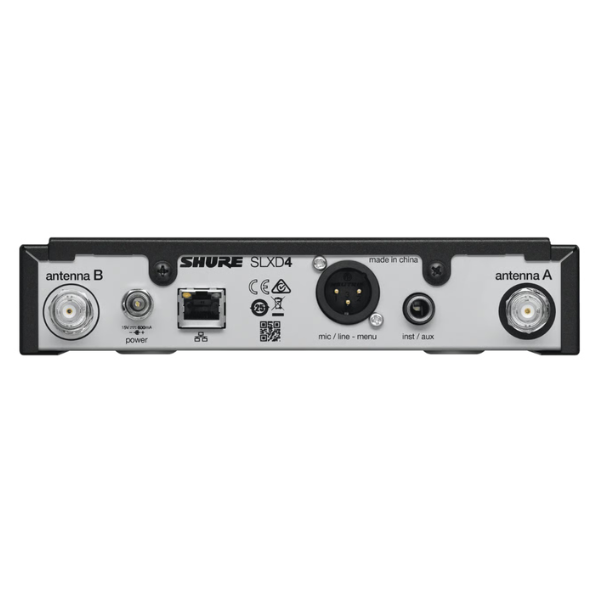

• Housed in a tough, half-rack metal chassis with detachable antennas, the SLXD4 receiver is a great fit for A/V installations or as part of a portable rackmount rig—ready to travel to a meeting or event.
• The SLX-D is engineered to provide outstanding sound for small- to medium-sized spaces and facilities—without costly, complicated features required primarily for large venues.
• Intuitive front-panel controls and a high-contrast LCD screen with audio and RF meters makes set up a snap.
• The auto-scan function automatically seeks out the cleanest available frequency for you. The receiver and transmitter then easily link to the same frequency via infrared.
• The receiver offers up to 60 dB of adjustable gain, and the display shows you where the ideal level should be.
• Adding the SB903 lithium-ion rechargeable battery, along with an SBC10-903 single charger or an SBC203 dual-docking charger, offers a cost-effective and environmentally friendly alternative to throwing away AA batteries (battery and chargers available separately).
• Using the SB903 battery and SBC203 charger simplifies the task of keeping multiple transmitters charged and ready—you can even recharge the battery while still in the transmitter.
• When powered by an SB903, the transmitter displays the remaining battery life in hours and minutes.
• Adding UA874 active antennas or PA805SWB passive antennas increases the range of your system and offers increased protection against interference.
• The UA844+SWB antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time.
