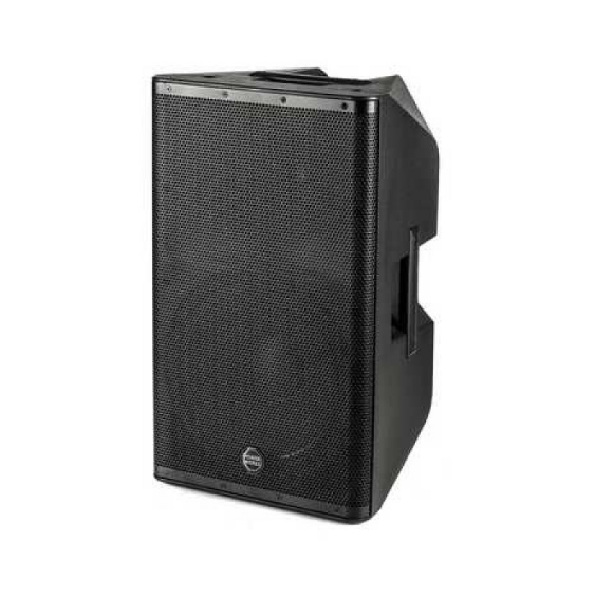

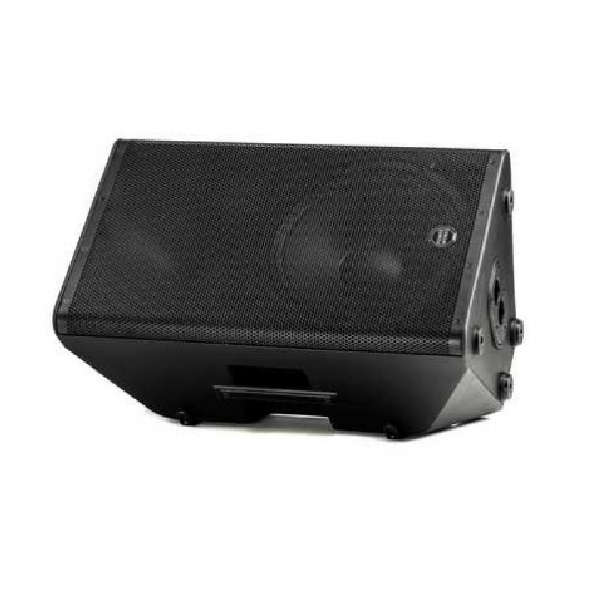

Powerworks APOLLO 12A Active Speaker

12” 1600W Peak 2-way Active Loudspeakers with DSP

APOLLO Series speakers are part of a larger range of PowerWorks Pro Audio product line. This cabinet delivers 1600W peak power, specially selected transducers and compression drivers with a powerful DSP, advanced housing material and anti-scratch black paint: all Components combined to offer the best quality and value for the most demanding Audio professionals. APOLLO series 10″, 12” and 15” woofers are punchy and loud; the 1.35” compression driver delivers crystal clear sound.

Built-in DSP allows you to select from 4 pre-set programs (Live, DJ, Speech and Monitor) to easily get your sound that you require for your event. There are three inputs with selectable inputs of Line/Mic with separate level controls.

FEATURES:

• Bi-Amped Active Speaker

• 1600W Peak Power

• Amplifier-Class-D (low-frequencies); Class-AB (high-frequencies)

• 1.35″ Compression Driver

• 4-Preset DSP (Live, DJ, Speech, Monitor)

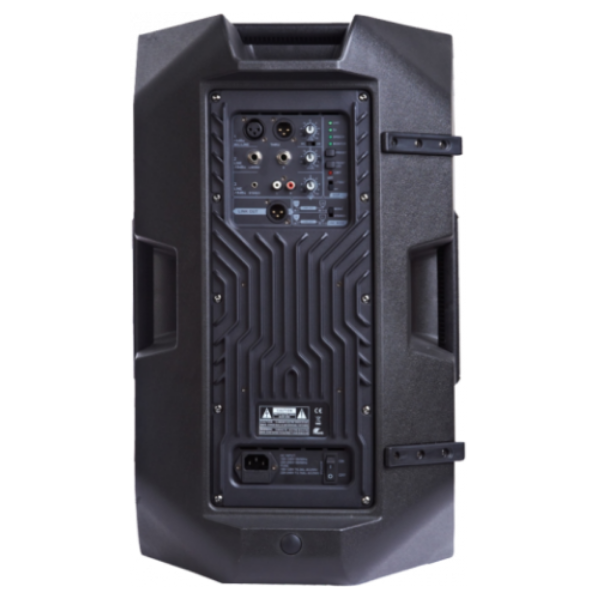

• Balanced MIC / Line XLR input with Thru XLR output, Line Stereo input with 2x ¼ “jack, Stereo input with Mini-Jack and RCA, all with independent level controls

• Link output with Mono / Stereo selection

• White Logo Front LED with On/Off Switch

• Sturdy Polypropylene Enclosure with black anti-scratch paint

• Flyable Check….

• Handles-1 on top, 2 on sides

• Pole Mount-Standard 35 mm with dual tilt 0 or 7

SPECS:

• Frequency Response: 50Hz – 19kHz / -10dB

• Max SPL: 134 dB

• Low-freq. Transducer: 12″ Woofer

• High-freq. Transducer: 1.35″ Compression Driver

• Coverage: 90° x 60°

• Low-Frequency Amplifier: Class-D 350W RMS – 1400W Peak

• High-Frequency Amplifier: Class-AB 50W RMS – 200W Peak

• AC Mains: 220/240V – 50/60Hz

• Power Consumption (Average/Peak): 800W / 1600W

• Fuse: T6.3AL-250V

• DSP: 4 preset (Live, DJ, Speech, Monitor)

• Input Connections: 1x XLR connector, 2x 63mm Jack, 1x Mini-Jack, 1x RCA Pair

• Output Connectors: 1x XLR Thru Output (Input 1), 1x XLR Link Output with Mono/Stereo selection

• Housing Material: Polypropylene

• Grille: Steel/1mm

• Flyable

• Handles: 2 on sides; 1 on top

• Tripod/Pole Hole: Standard D35mm with dual tilt 0 or 7°

• Speaker Size (WxHxD): 405 x 640 x 395 mm

• Packing Size (WxHxD): 450 x 675 x 430 mm

• Speaker Weight: 15.8 kg

• Carton Weight: 16.9 kg
